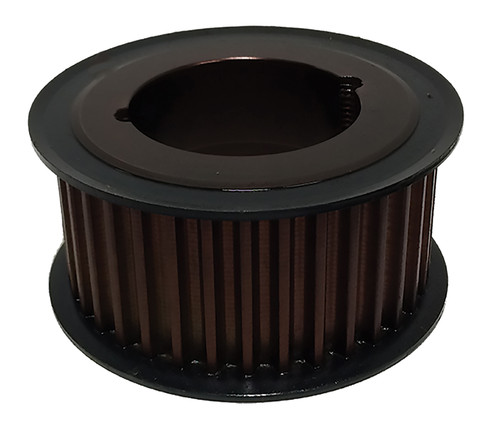

32-8MX36-1210, Timing Pulley

32-8MX36-1210 - Cast Iron Powerhouse® MX Pulleys

32-8MX36-1210

32-8MX36-1210 - Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

32-8MX36-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 32-8MX36-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-8MX36-1210
Teeth 32
Tooth Style 8MX
For Belt Width (mm) 36.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.208
Outside Diameter (in) 3.145
Flange Diameter (in) 3.543
Face Width (in) 1.859
Overall Length (in) 1.859
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.620
Unit System Inch
Bushing 1210
P.D. (mm) 82.00
O.D. (mm) 79.90
MOQ 1
Weight (lb) 1.74
Part Number Cross Reference 8MX-32S-36, B8MCS-32-36, 32G-8M-36-1210, 20839716, 8MX-32S-36-1210 HT500 SPKT, 8MPC32S36, 32-8MX36-1210, 481958, 32-8MX36-1210

Comparable to: 8MX-32S-36, B8MCS-32-36, 32G-8M-36-1210, 20839716, 8MX-32S-36-1210 HT500 SPKT, 8MPC32S36, 32-8MX36-1210, 481958, 32-8MX36-1210
