32-8P50-1210, Timing Pulley

32-8P50-1210 - Cast Iron Powerhouse® Pulleys

Product Details for 32-8P50-1210

Comparable to: P32-8MGT-50, 77085032, 2763126, B328M50TL, P32-8M-50-1210, 20182782

Click to Enlarge

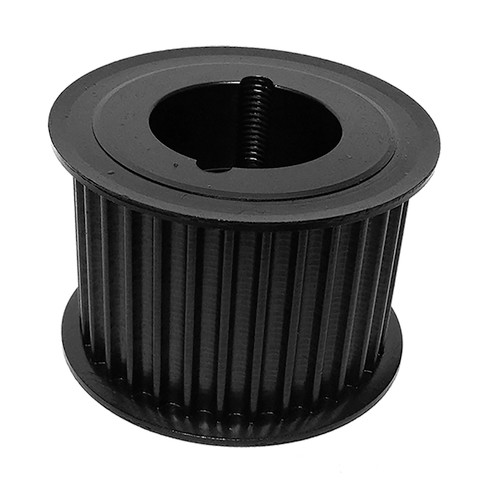

32-8P50-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 32-8P50-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-8P50-1210
Teeth 32
Tooth Style 8P
For Belt Width (mm) 50
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 3.208
Outside Diameter (in) 3.154
Flange Diameter (in) 3.543
Face Width (in) 2.380
Overall Length (in) 2.380
Min. Bore (in) 0.500
Pulley Belt Width (in) 2.140
Unit System Inch
Bushing 1210
MOQ 1
Weight (lb) 2.31
Part Number Cross Reference P32-8MGT-50, 77085032, 2763126, B328M50TL, P32-8M-50-1210, 20182782
