32T5-PS160A, Timing Pulley Stock

32T5-PS160A, A6A34M032T16, A 6A34M032T16, 32T5-PS-160

Product Details for 32T5-PS160A

Comparable to: A 6A34M032T16, A6A34M032T16, 32T5-PS-160, T532

Click to Enlarge

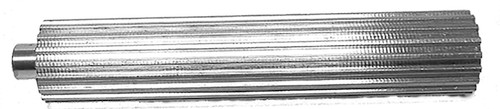

32T5-PS160A, Timing Pulley Stock, Aluminum

Learn more about 32T5-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32T5-PS160A
Teeth 32
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 2.012
Outside Diameter (in) 1.972
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 51.10
O.D. (mm) 50.10
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 1.87
Part Number Cross Reference A 6A34M032T16, A6A34M032T16, 32T5-PS-160, T532
Shank Length (in) 0.8000
