32XL037-3FA6 Imperial Pitch Pulleys

32XL037-3FA6

Product Details for 32XL037-3FA6

Comparable to: 32XL037-3FA6,

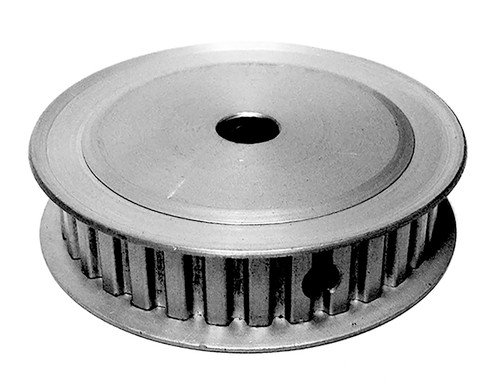

32XL037-3FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

Specifications

Product Number 32XL037-3FA6
Teeth 32
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.5
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Flange Diameter (in) 2.250
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.430
Unit System Inch
Weight (lb) 0.17
List Price (1-9 Qty.) (USD) 15.46
Discount Price (10-24 Qty.) (USD) 13.91
Discount Price (25-49 Qty.) (USD) 11.59
Discount Price (50-99 Qty.) (USD) 10.05
Discount Price (100-249 Qty.) (USD) 8.11
Part Number Cross Reference 32XL037-3FA6,
