32XL037-6A5 Imperial Pitch Pulleys

32XL037-6A5, A 6A3-32NF03712, A6A3-32NF03712

Product Details for 32XL037-6A5

Comparable to: 32XL037-6A5, A 6A3-32NF03712, A6A3-32NF03712

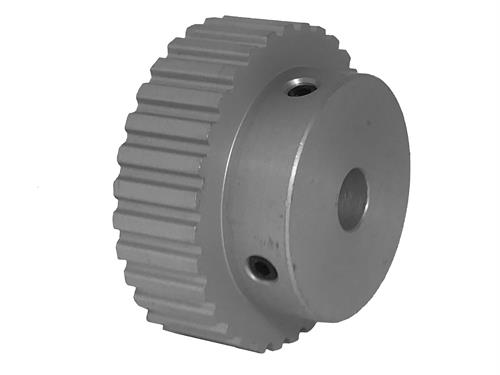

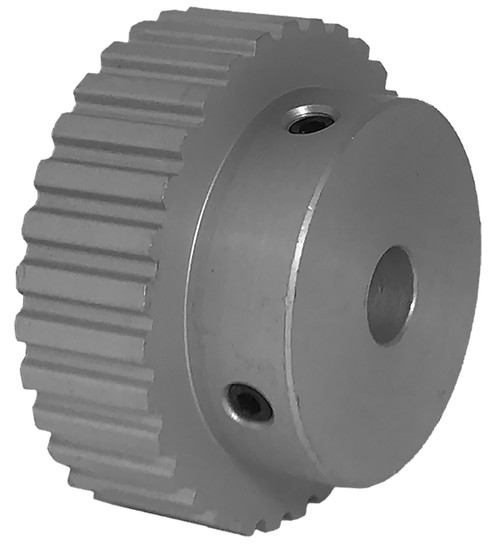

32XL037-6A5, Timing Pulley, Powerhouse Timing, 3/8 Inch Bore, Aluminum

Specifications

Product Number 32XL037-6A5
Teeth 32
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.375
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.25
Part Number Cross Reference 32XL037-6A5, A 6A3-32NF03712, A6A3-32NF03712

Documentation

Download Catalog 2015_BBMAN_CATALOG_22.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 32XL037-6A5_REACH_cert
RoHS Certification 32XL037-6A5_RoHS_cert
