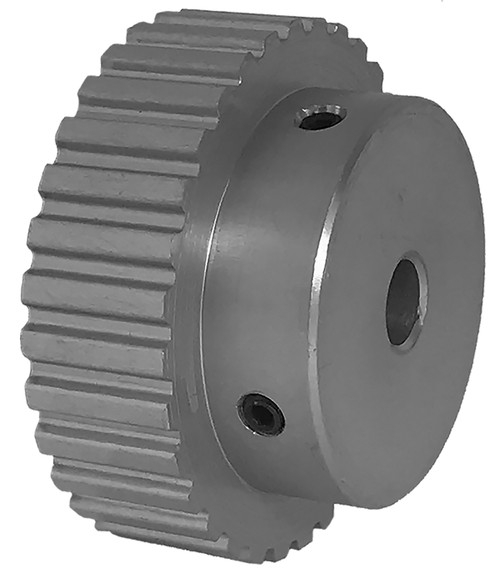

32XL037-6A6, Timing Pulley

32XL037-6A6

32XL037-6A6

32XL037-6A6 Line Drawing

Click to Enlarge

32XL037-6A6, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 32XL037-6A6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 32XL037-6A6
Teeth 32
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.500
Bore Description 1/2 Inch Finished Bore
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Min. Bore (in) 0.5
Unit System Inch
P.D. (mm) 52.00
O.D. (mm) 51.20
MOQ 1
Weight (lb) 0.25
Part Number Cross Reference 32XL037-6A6, 32XL037-6A6
