32XL037-6FA8, Timing Pulley

32XL037-6FA8

32XL037-6FA8

32XL037-6FA8 Line Drawing

Click to Enlarge

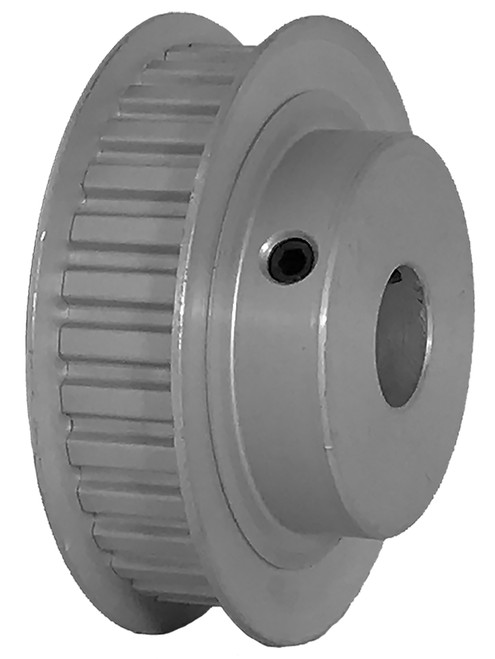

32XL037-6FA8, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 32XL037-6FA8 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 32XL037-6FA8
Teeth 32
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.750
Bore Description 3/4 Inch Finished Bore
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Flange Diameter (in) 2.250
Face Width (in) 0.563
Overall Length (in) 0.906
Hub Diameter (in) 1.437
Min. Bore (in) 0.75
Unit System Inch
P.D. (mm) 52.00
O.D. (mm) 51.20
MOQ 1
Weight (lb) 0.25
Part Number Cross Reference 32XL037-6FA8, 32XL037-6FA8
Set Screw Quantity 2
