32XL037M6FA12, Timing Pulley

32XL037M6FA12 - Aluminum Metric Pulleys

32XL037M6FA12

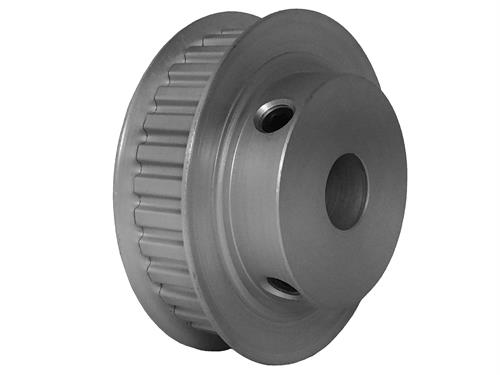

Click to Enlarge

32XL037M6FA12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32XL037M6FA12 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32XL037M6FA12
Teeth 32
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 12 mm Finished Bore
Bore (mm) 12.00
Pitch Diameter (in) 2.037
Outside Diameter (in) 2.017
Pulley Belt Width (mm) 10.90
Unit System Metric
P.D. (mm) 52.00
O.D. (mm) 51.20
Flange Diameter (mm) 57.00
Face Width (mm) 14.20
Overall Length (mm) 23.00
Hub Diameter (mm) 37.00
MOQ 1
Weight (lb) 0.25
Part Number Cross Reference A 6A3M32DF09512, A6A3M32DF09512, 32XL037M6FA12
Set Screw Quantity 2
