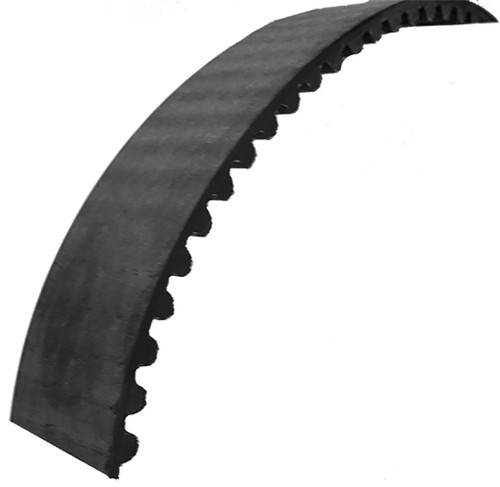

330-5P-09 Powerhouse™ Belts

330-5P-09, A 6R55M066090, A6R55M066090, 330-5MGT-09, 330-5M-9, 3305

Product Details for 330-5P-09

Comparable to: 330-5P-09, A 6R55M066090, A6R55M066090, 330-5MGT-09, 330-5M-9, 3305

330-5P-09, Timing Belt, Powerhouse, Neoprene / Fiberglass

Specifications

Product Number 330-5P-09
Teeth 66
Tooth Style GT 5mm
Unit System Metric
Belt Type Single Sided
Belt Width (mm) 9.00
Pitch Length (mm) 330.00
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 0.02
Part Number Cross Reference 330-5P-09, A 6R55M066090, A6R55M066090, 330-5MGT-09, 330-5M-9, 3305

Documentation

Download Catalog 2015_BBMAN_CATALOG_238.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
REACH Certification 330-5P-09_REACH_cert
RoHS Certification 330-5P-09_RoHS_cert
