34-14MX90-6FS16, Timing Pulley

34-14MX90-6FS16 - Cast Iron Powerhouse® MX Pulleys

Product Details for 34-14MX90-6FS16

Comparable to: 34-14MX90-6FS16, PB14MX-34S-90, PB14MCS-34-90, 34G-14M-90-MPB, 208398

Click to Enlarge

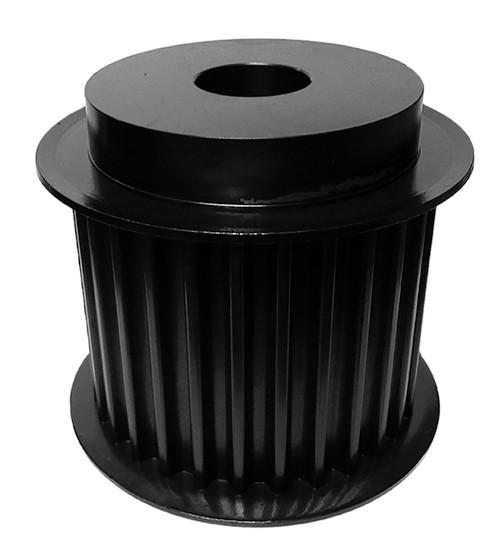

34-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 34-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-14MX90-6FS16
Teeth 34
Tooth Style GT2 14mm
For Belt Width (mm) 90.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.855
Flange Diameter (in) 6.465
Face Width (in) 4.203
Overall Length (in) 5.203
Hub Diameter (in) 4.890
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.880
Unit System Inch
Max. Bore (in) 4.64
Weight (lb) 29.79
Part Number Cross Reference 34-14MX90-6FS16, PB14MX-34S-90, PB14MCS-34-90, 34G-14M-90-MPB, 208398
