34-14P40-2012, Timing Pulley

34-14P40-2012 - Cast Iron Powerhouse® Pulleys

34-14P40-2012

Click to Enlarge

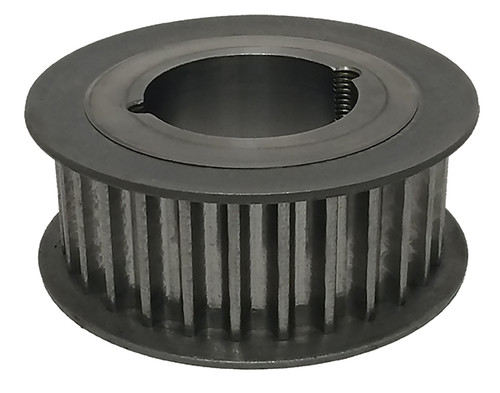

34-14P40-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 34-14P40-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-14P40-2012
Teeth 34
Tooth Style 14P
For Belt Width (mm) 40
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.855
Flange Diameter (in) 6.465
Face Width (in) 2.130
Overall Length (in) 2.130
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.810
Unit System Inch
Bushing 2012
P.D. (mm) 152.00
O.D. (mm) 148.70
MOQ 1
Weight (lb) 9.34
Part Number Cross Reference 34-14P40-2012
