34-3M06-6A3, Timing Pulley

34-3M06-6A3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 34-3M06-6A3

Comparable to: A 6A23-034NF0608, A6A23-034NF0608

Click to Enlarge

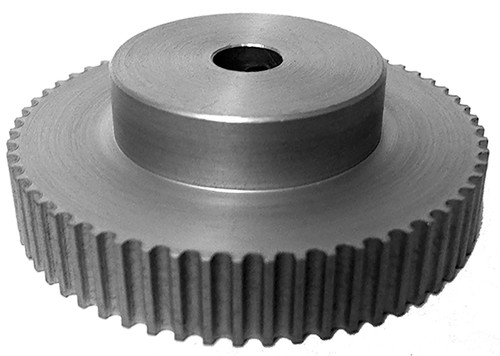

34-3M06-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34-3M06-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-3M06-6A3
Teeth 34
Tooth Style HTD 3mm
For Belt Width (mm) 6
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.278
Outside Diameter (in) 1.248
Face Width (in) 0.407
Overall Length (in) 0.713
Hub Diameter (in) 0.921
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference A 6A23-034NF0608, A6A23-034NF0608
Set Screw Quantity 2
