34-3M06MIA6, Timing Pulley

34-3M06MIA6 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

Product Details for 34-3M06MIA6

Comparable to: A 6D23M034DF0606, A6D23M034DF0606

Click to Enlarge

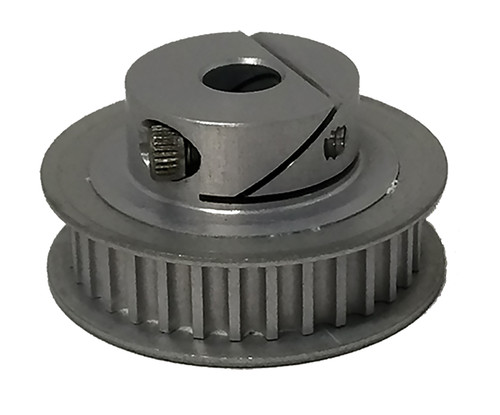

34-3M06MIA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 34-3M06MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-3M06MIA6
Teeth 34
Tooth Style HTD 3mm
For Belt Width (mm) 6
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 6.00
Unit System Metric
P.D. (mm) 32.50
O.D. (mm) 31.70
Flange Diameter (mm) 35.50
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 19.10
Number & Screw Size 1 x M2
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference A 6D23M034DF0606, A6D23M034DF0606
