34-5M15-6FA10, Timing Pulley

34-5M15-6FA10

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

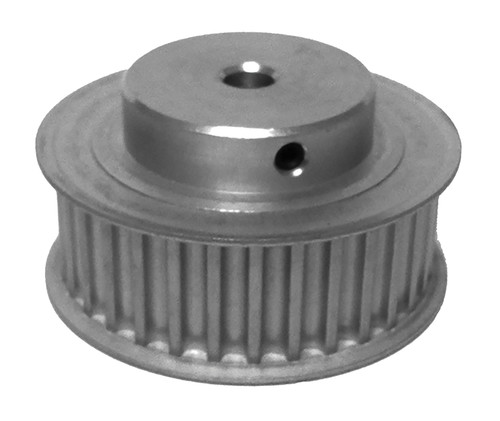

34-5M15-6FA10, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 34-5M15-6FA10 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	34-5M15-6FA10
Teeth	34
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	1.000
Bore Description	1 Inch Finished Bore
Pitch Diameter (in)	2.130
Outside Diameter (in)	2.085
Flange Diameter (in)	2.250
Min. Bore (in)	1
Unit System	Inch
P.D. (mm)	54.00
O.D. (mm)	53.00
MOQ	1
Weight (lb)	0.22
Part Number Cross Reference	34-5M15-6FA10, 34-5M15-6FA10

Comparable to: 34-5M15-6FA10, 34-5M15-6FA10
