34-5P15-6FA6, Timing Pulley

34-5P15-6FA6

34-5P15-6FA6

34-5P15-6FA6 Line Drawing

Click to Enlarge

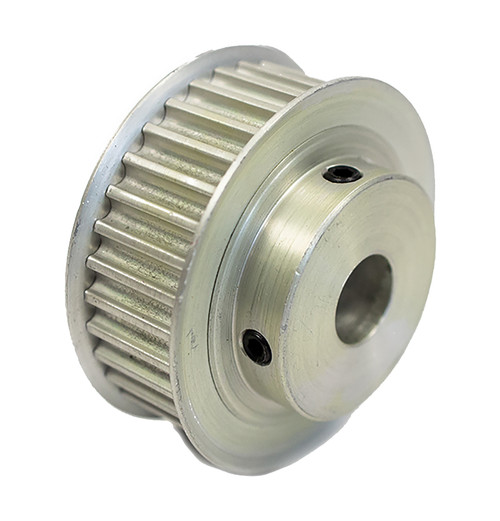

34-5P15-6FA6, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 34-5P15-6FA6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 34-5P15-6FA6
Teeth 34
Tooth Style 5P
For Belt Width (mm) 15.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.500
Bore Description 1/2 Inch Finished Bore
Pitch Diameter (in) 2.130
Outside Diameter (in) 2.085
Flange Diameter (in) 2.250
Face Width (in) 0.781
Overall Length (in) 1.094
Hub Diameter (in) 1.375
Min. Bore (in) 0.5
Unit System Inch
P.D. (mm) 54.00
O.D. (mm) 53.00
MOQ 1
Weight (lb) 0.29
Part Number Cross Reference 34-5P15-6FA6, 34-5P15-6FA6
