34-8MX12-6FS6SS, Timing Pulley

34-8MX12-6FS6SS

Click to Enlarge

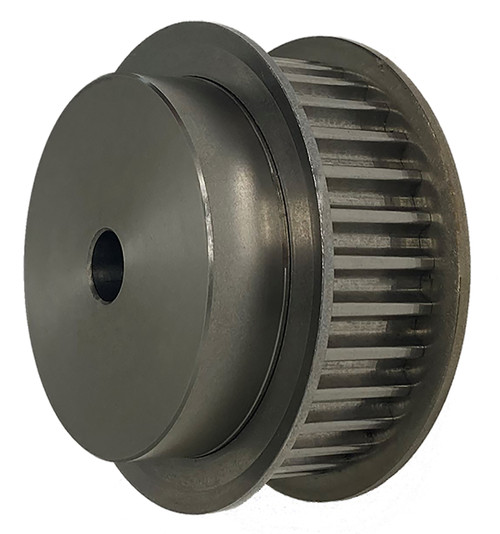

34-8MX12-6FS6SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 34-8MX12-6FS6ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	34-8MX12-6FS6SS
Teeth	34
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	6F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	3.409
Outside Diameter (in)	3.346
Flange Diameter (in)	3.819
Face Width (in)	1.000
Overall Length (in)	1.000
Unit System	Inch
P.D. (mm)	87.00
O.D. (mm)	85.00
MOQ	1
Weight (lb)	2.60
Part Number Cross Reference	SS 8MX-34S-12 MPB, SS 34G-8M-12-MPB STAINLESS STEEL QTE, 21071669, 34-8MX12-6FS6SS, 34-8MX12-6FS6SS
