34-8MX21-1610SS, Timing Pulley

34-8MX21-1610SS

Click to Enlarge

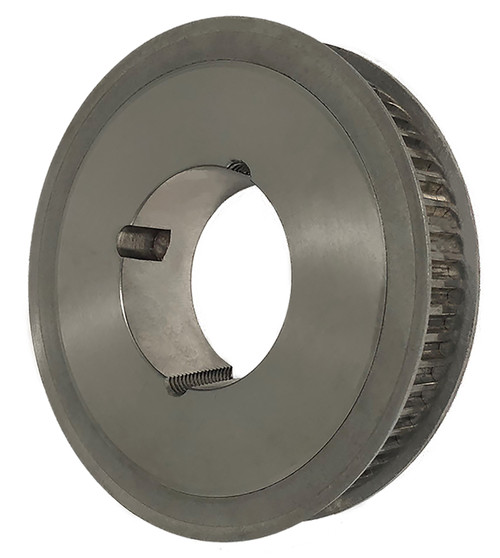

34-8MX21-1610SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 34-8MX21-1610ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	34-8MX21-1610SS
Teeth	34
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	A1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	3.409
Outside Diameter (in)	3.346
Flange Diameter (in)	3.819
Face Width (in)	1.203
Overall Length (in)	1.203
Min. Bore (in)	0.5
Unit System	Inch
Bushing	1610
P.D. (mm)	87.00
O.D. (mm)	85.00
MOQ	1
Weight (lb)	1.46
Part Number Cross Reference	SS 8MX-34S-21 1610, SS 34G-8M-21-1610 STAINLESS STEEL, 21069995, 34-8MX21-1610SS, 34-8MX21-1610SS
