34-8MX62-1610, Timing Pulley

34-8MX62-1610 - Cast Iron Powerhouse® MX Pulleys

34-8MX62-1610

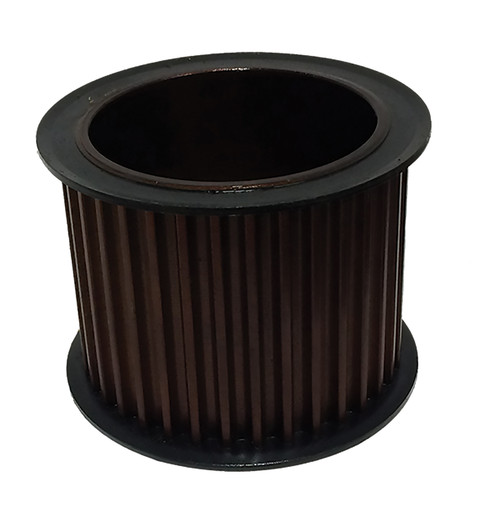

Click to Enlarge

34-8MX62-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 34-8MX62-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 34-8MX62-1610
Teeth 34
Tooth Style 8MX
For Belt Width (mm) 62
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.409
Outside Diameter (in) 3.346
Flange Diameter (in) 3.819
Face Width (in) 2.906
Overall Length (in) 2.906
Min. Bore (in) 0.500
Pulley Belt Width (in) 2.670
Unit System Inch
Bushing 1610
P.D. (mm) 87.00
O.D. (mm) 85.00
MOQ 1
Weight (lb) 2.49
Part Number Cross Reference 8MX-34S-62, B8MCS-34-62, 34G-8M-62-1610, 481996, 8MPC34S62, GTR-34G-8M-62, GTR-34G-8M-62, 8MX-34S-62-1610, 34-8MX62-1610

Comparable to: 8MX-34S-62, B8MCS-34-62, 34G-8M-62-1610, 481996, 8MPC34S62, GTR-34G-8M-62, GTR-34G-8M-62, 8MX-34S-62-1610, 34-8MX62-1610

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
