35LT312-6FA3, Timing Pulley

35LT312-6FA3 - Aluminum Imperial Pitch Pulleys

35LT312-6FA3

Click to Enlarge

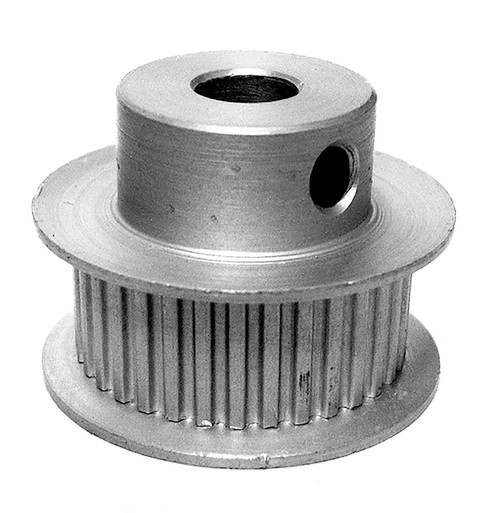

35LT312-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 35LT312-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 35LT312-6FA3
Teeth 35
Tooth Style LT
For Belt Width (in) 0.3125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.909
Outside Diameter (in) 0.889
Flange Diameter (in) 1.080
Face Width (in) 0.449
Overall Length (in) 0.750
Hub Diameter (in) 0.650
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.350
Unit System Inch
P.D. (mm) 23.00
O.D. (mm) 22.60
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference 35LT312-6FA3
Set Screw Quantity 2
