36-3M06M6A6, Timing Pulley

36-3M06M6A6 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 36-3M06M6A6

Comparable to: A 6A23M036NF0606, A6A23M036NF0606

Click to Enlarge

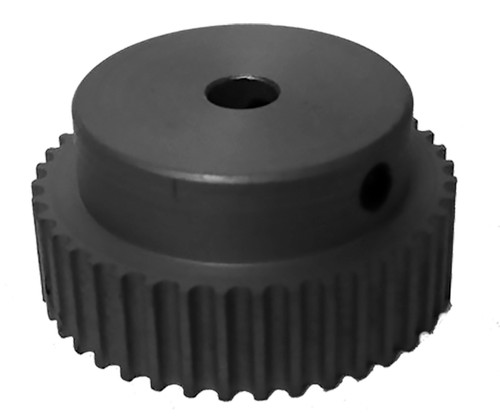

36-3M06M6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-3M06M6A6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-3M06M6A6
Teeth 36
Tooth Style HTD 3mm
For Belt Width (mm) 6
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 6.00
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 34.40
O.D. (mm) 33.60
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 25.40
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference A 6A23M036NF0606, A6A23M036NF0606
Set Screw Quantity 2
