36-5M09M6A10, Timing Pulley

36-5M09M6A10 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 36-5M09M6A10

Comparable to: A 6A25M038NF0910, A6A25M036NF0910

Click to Enlarge

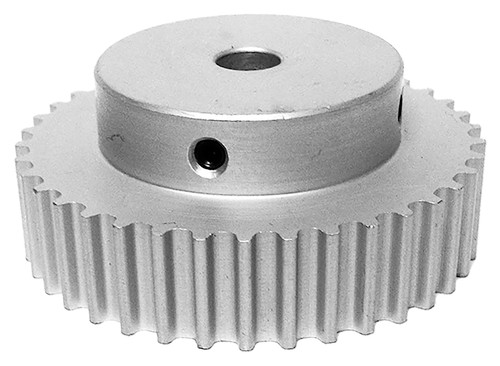

36-5M09M6A10, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36-5M09M6A10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-5M09M6A10
Teeth 36
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 10.00
Face Width (in) 0.546
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 57.30
O.D. (mm) 56.20
Face Width (mm) 13.90
Overall Length (mm) 23.80
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.28
Part Number Cross Reference A 6A25M038NF0910, A6A25M036NF0910
Set Screw Quantity 2
