36-5M15-6FS6, Timing Pulley

36-5M15-6FS6 - Steel Powerhouse®HTD® Pulleys

Product Details for 36-5M15-6FS6

Comparable to: P36-5M-15X1/2 MPB, 20182307, 114640, P36-5M-15

Click to Enlarge

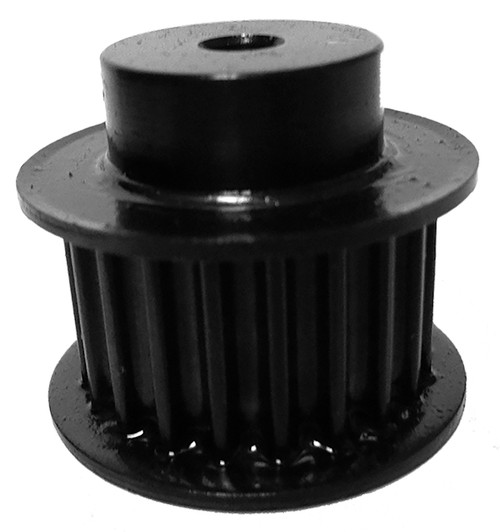

36-5M15-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 36-5M15-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36-5M15-6FS6
Teeth 36
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.256
Outside Diameter (in) 2.211
Flange Diameter (in) 2.375
Face Width (in) 0.840
Overall Length (in) 1.340
Hub Diameter (in) 1.797
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.650
Unit System Inch
MOQ 1
Weight (lb) 1.21
Part Number Cross Reference P36-5M-15X1/2 MPB, 20182307, 114640, P36-5M-15
