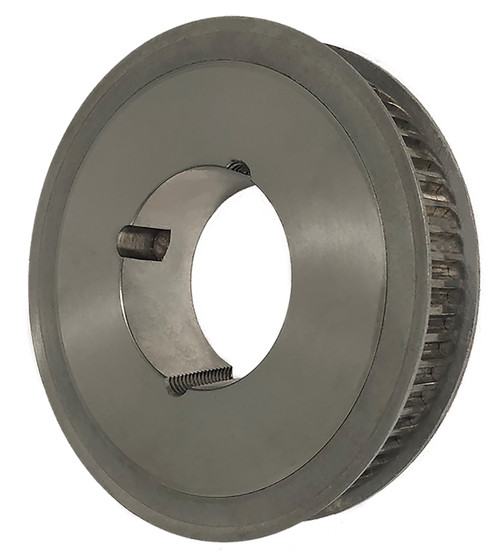

36-8MX21-1610SS, Timing Pulley

36-8MX21-1610SS

Click to Enlarge

36-8MX21-1610SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 36-8MX21-1610ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	36-8MX21-1610SS
Teeth	36
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	A1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	3.609
Outside Diameter (in)	3.546
Flange Diameter (in)	3.938
Face Width (in)	1.203
Overall Length (in)	1.203
Min. Bore (in)	0.5
Unit System	Inch
Bushing	1610
P.D. (mm)	92.00
O.D. (mm)	90.10
MOQ	1
Weight (lb)	1.77
Part Number Cross Reference	SS 8MX-36S-21 1610, SS 36G-8M-21-1610 STAINLESS STEEL QTE, 21071715, 36-8MX21-1610SS, 36-8MX21-1610SS
