36-8MX36-1610 Powerhouse™ Mx Pulleys

36-8MX36-1610, 8MX-36S-36, B8MCS-36-36, 36G-8M-36-TL1610, 208397

Product Details for 36-8MX36-1610

Comparable to: 36-8MX36-1610, 8MX-36S-36, B8MCS-36-36, 36G-8M-36-TL1610, 208397

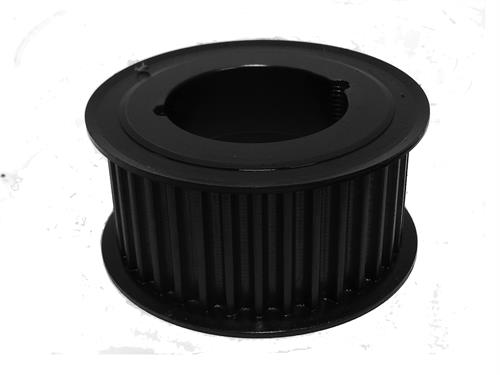

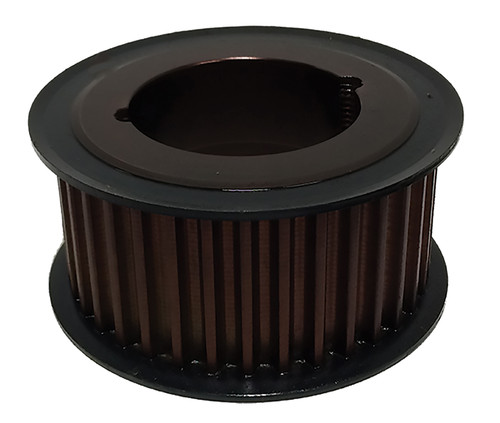

36-8MX36-1610, Timing Pulley, Powerhouse MX, 1610 Bushing, Cast Iron

Specifications

Product Number 36-8MX36-1610
Teeth 36
Tooth Style GT2 8mm
For Belt Width (mm) 36.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.609
Outside Diameter (in) 3.546
Flange Diameter (in) 3.938
Face Width (in) 1.859
Overall Length (in) 1.859
Pulley Belt Width (in) 1.620
Unit System Inch
Bushing 1610
Weight (lb) 2.23
Part Number Cross Reference 36-8MX36-1610, 8MX-36S-36, B8MCS-36-36, 36G-8M-36-TL1610, 208397

Documentation

Download Catalog 2015_BBMAN_CATALOG_161.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36-8MX36-1610_REACH_cert
RoHS Certification 36-8MX36-1610_RoHS_cert
