36-8P50-1610, Timing Pulley

36-8P50-1610

Click to Enlarge

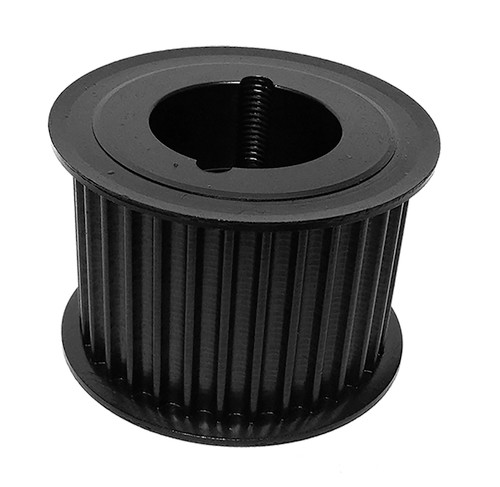

36-8P50-1610, Timing Pulley, Steel, Black Oxide,

Learn more about 36-8P50-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	36-8P50-1610
Teeth	36
Tooth Style	8P
For Belt Width (mm)	50.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	3.609
Outside Diameter (in)	3.555
Flange Diameter (in)	3.938
Face Width (in)	2.380
Overall Length (in)	2.380
Min. Bore (in)	0.5
Pulley Belt Width (in)	2.140
Unit System	Inch
Bushing	1610
P.D. (mm)	92.00
O.D. (mm)	90.30
MOQ	1
Weight (lb)	3.25
Part Number Cross Reference	P36-8MGT-50, B368M50TL, P36-8M-50-1610, 20182797, P36-8M-50-1610 HT250 SPKT, P368M50TL, 36-8P50-1610, 112889, 36-8P50-1610
