36HQ300, Timing Pulley

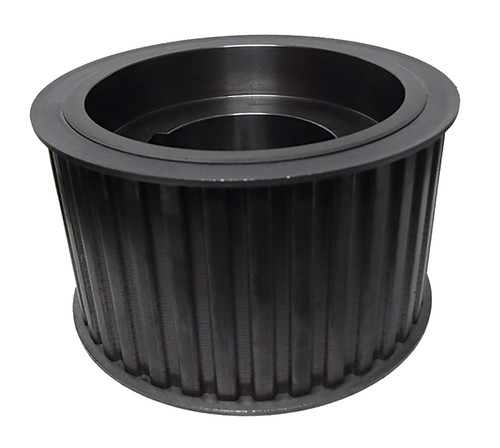

36HQ300 - Cast Iron Imperial Pitch Pulleys

36HQ300

36HQ300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

36HQ300, Timing Pulley, Cast Iron

Learn more about 36HQ300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36HQ300
Teeth 36
Tooth Style H
For Belt Width (in) 3.0000
Type 11
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 5.730
Outside Diameter (in) 5.676
Flange Diameter (in) 6.000
Face Width (in) 3.438
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 146.00
O.D. (mm) 144.20
MOQ 1
Weight (lb) 12.16
Part Number Cross Reference 36HQ300, 36HQ300, 36HQ300
