36MP025-6FA2, Timing Pulley

36MP025-6FA2

36MP025-6FA2

36MP025-6FA2 Line Drawing

Click to Enlarge

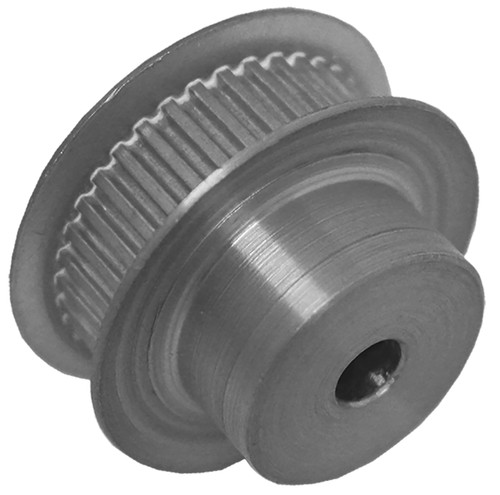

36MP025-6FA2, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 36MP025-6FA2 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 36MP025-6FA2
Teeth 36
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.917
Outside Diameter (in) 0.897
Flange Diameter (in) 1.105
Face Width (in) 0.389
Overall Length (in) 0.688
Hub Diameter (in) 0.676
Unit System Inch
P.D. (mm) 23.00
O.D. (mm) 22.80
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference 36MP025-6FA2, 36MP025-6FA2
Set Screw Quantity 2
