36MP025-IA3 Imperial Pitch Pulleys

36MP025-IA3, A 6D16-036DF2508

Product Details for 36MP025-IA3

Comparable to: 36MP025-IA3, A 6D16-036DF2508,

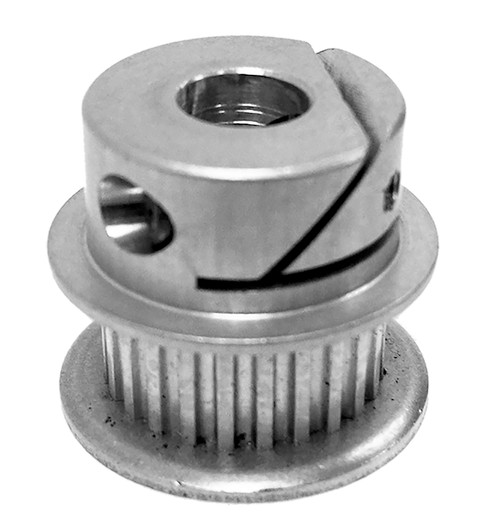

36MP025-IA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum, E-Z Lock Hub

Specifications

Product Number 36MP025-IA3
Teeth 36
Tooth Style MXL
For Belt Width (in) 0.250
Type 6FI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 0.917
Outside Diameter (in) 0.897
Flange Diameter (in) 1.105
Face Width (in) 0.389
Overall Length (in) 0.688
Hub Diameter (in) 0.625
Min. Bore (in) 0.25
Unit System Inch
Number & Screw Size 1 x 2-56
Weight (lb) 0.06
List Price (1-9 Qty.) (USD) 14.9625
Discount Price (10-24 Qty.) (USD) 14.5688
Discount Price (25-49 Qty.) (USD) 12.0745
Discount Price (50-99 Qty.) (USD) 8.667
Discount Price (100-249 Qty.) (USD) 7.704
Part Number Cross Reference 36MP025-IA3, A 6D16-036DF2508,

Documentation

Download Catalog 2015_BBMAN_CATALOG_5.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 36MP025-IA3_REACH_cert
RoHS Certification 36MP025-IA3_RoHS_cert
