36MP037M6FA6, Timing Pulley

36MP037M6FA6 - Aluminum Metric Pulleys

36MP037M6FA6

36MP037M6FA6 - Aluminum Metric Pulleys Line Drawing

Click to Enlarge

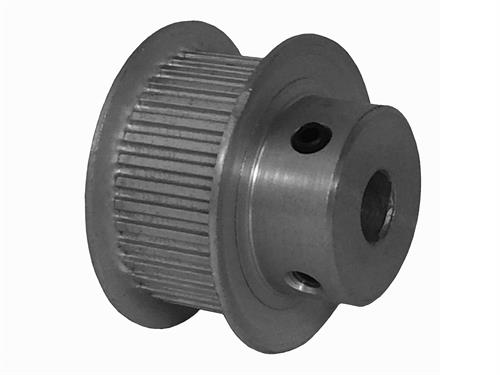

36MP037M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36MP037M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36MP037M6FA6
Teeth 36
Tooth Style MXL
For Belt Width (in) 0.3750
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.917
Outside Diameter (in) 0.897
Pulley Belt Width (mm) 10.40
Unit System Metric
P.D. (mm) 23.00
O.D. (mm) 22.80
Flange Diameter (mm) 28.10
Face Width (mm) 13.10
Overall Length (mm) 20.60
Hub Diameter (mm) 17.20
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference 36MP037M6FA6
Set Screw Quantity 2
