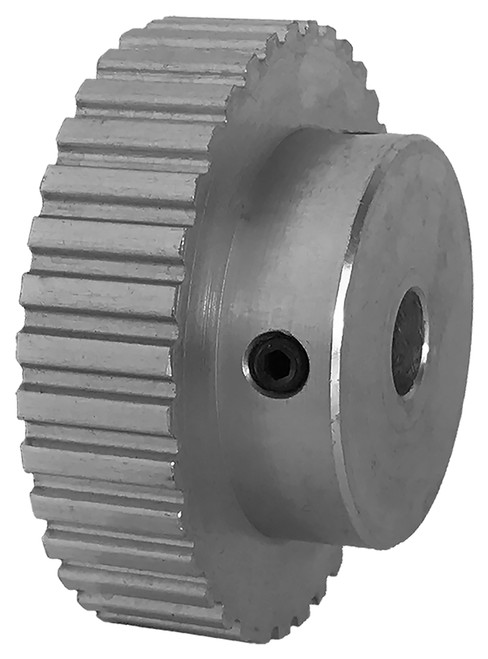

36XL037-6A5, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 36XL037-6A5 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	36XL037-6A5
Teeth	36
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	2.292
Outside Diameter (in)	2.272
Face Width (in)	0.563
Overall Length (in)	1.000
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	58.00
O.D. (mm)	57.70
MOQ	1
Weight (lb)	0.29
Part Number Cross Reference	36XL037 X 3/8 6A, 36XL037-6A5, 36XL037-6A5
Set Screw Quantity	2

Comparable to: 36XL037 X 3/8 6A, 36XL037-6A5, 36XL037-6A5
