37-14P40-2517, Timing Pulley

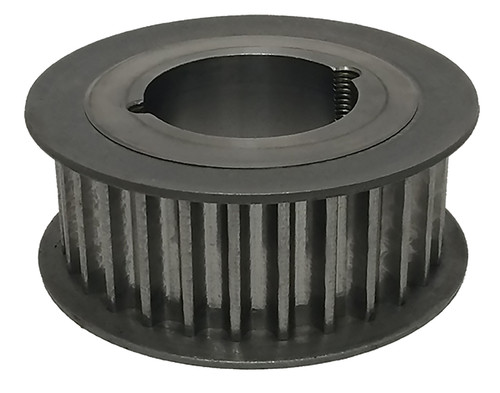

37-14P40-2517 - Cast Iron Powerhouse® Pulleys

37-14P40-2517

37-14P40-2517 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

37-14P40-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 37-14P40-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 37-14P40-2517
Teeth 37
Tooth Style 14P
For Belt Width (mm) 40.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 6.492
Outside Diameter (in) 6.382
Flange Diameter (in) 7.167
Face Width (in) 2.130
Overall Length (in) 2.130
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.810
Unit System Inch
Bushing 2517
P.D. (mm) 165.00
O.D. (mm) 162.10
MOQ 1
Weight (lb) 11.70
Part Number Cross Reference P37-14MGT-40, B3714M40TL, P37-14M40-2517, 37-14P40-2517, 37-14P40-2517
