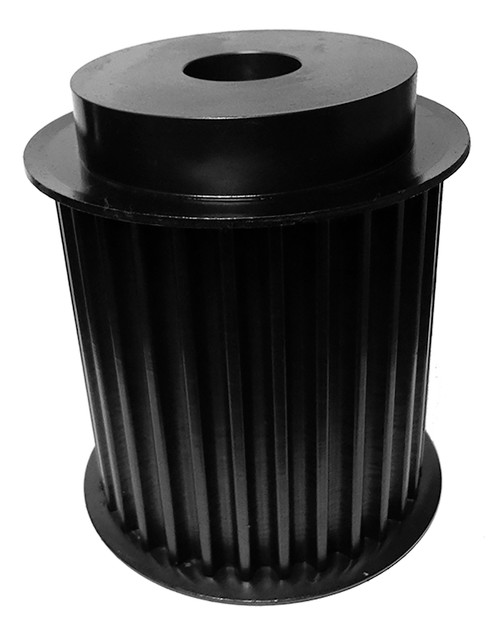

38-14M115-6FS13, Timing Pulley

38-14M115-6FS13

Click to Enlarge

38-14M115-6FS13, Timing Pulley, Steel, Black Oxide,

Learn more about 38-14M115-6FS13 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	38-14M115-6FS13
Teeth	38
Tooth Style	HTD14mm
For Belt Width (mm)	115.00
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.250
Bore Description	1-1/4 Inch Minimum Plain Bore
Pitch Diameter (in)	6.667
Outside Diameter (in)	6.557
Flange Diameter (in)	7.160
Face Width (in)	5.250
Overall Length (in)	5.250
Hub Diameter (in)	5.630
Min. Bore (in)	1.25
Unit System	Inch
P.D. (mm)	169.00
O.D. (mm)	166.50
MOQ	1
Weight (lb)	44.40
Part Number Cross Reference	P38-14M-115, 38-14M115-6FS13, 38-14M115-6FS13
