38-14M170-6FS16, Timing Pulley

38-14M170-6FS16 - Steel Powerhouse®HTD® Pulleys

Product Details for 38-14M170-6FS16

Comparable to: P38-14M-170

Click to Enlarge

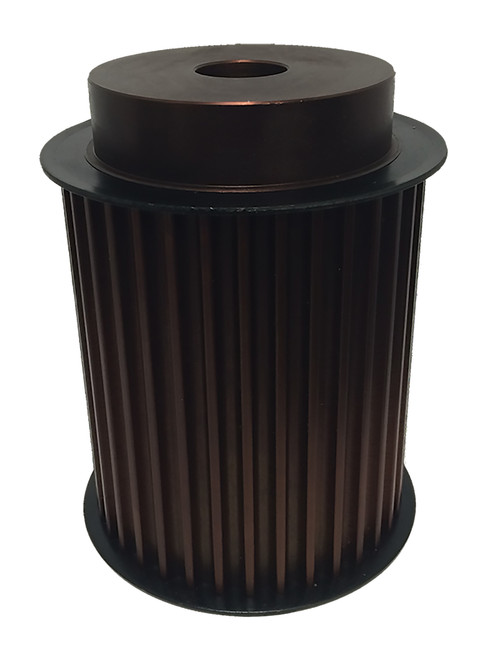

38-14M170-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 38-14M170-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-14M170-6FS16
Teeth 38
Tooth Style HTD 14mm
For Belt Width (mm) 170
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.559
Flange Diameter (in) 7.160
Face Width (in) 7.375
Overall Length (in) 7.375
Hub Diameter (in) 5.630
Min. Bore (in) 1.500
Unit System Inch
MOQ 1
Weight (lb) 55.70
Part Number Cross Reference P38-14M-170
