38-8MX12-1610SS, Timing Pulley

38-8MX12-1610SS

Click to Enlarge

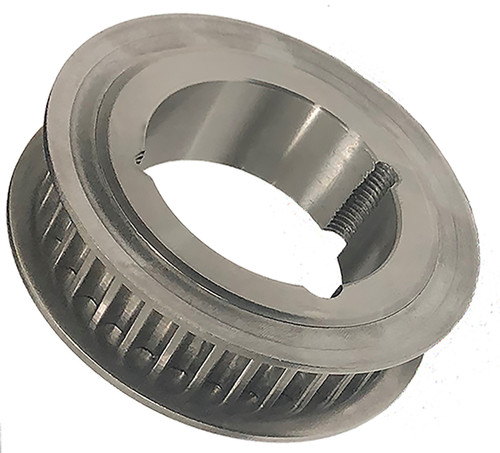

38-8MX12-1610SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 38-8MX12-1610ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	38-8MX12-1610SS
Teeth	38
Tooth Style	8MX
For Belt Width (mm)	12.00
Type	A1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	3.810
Outside Diameter (in)	3.747
Flange Diameter (in)	4.156
Face Width (in)	1.000
Overall Length (in)	1.000
Min. Bore (in)	0.5
Unit System	Inch
Bushing	1610
P.D. (mm)	97.00
O.D. (mm)	95.20
MOQ	1
Weight (lb)	1.88
Part Number Cross Reference	SS 8MX-38S-12 1610, SS 38G-8M-12-1610 STAINLESS STEEL QTE, 21071701, 38-8MX12-1610SS, 38-8MX12-1610SS
