38-8MX36-6FS6, Timing Pulley

38-8MX36-6FS6 - Cast Iron Powerhouse® MX Pulleys

Product Details for 38-8MX36-6FS6

Comparable to: PB8MX-38S-36, 77153038, TB 8M-38S-36, 2765592, PB8MCS-38-36, 38G-8M-36-MPB, 20839732, 8MPC38S36MPB

Click to Enlarge

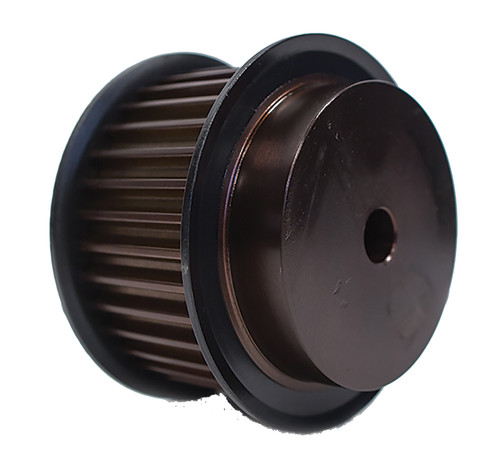

38-8MX36-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 38-8MX36-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-8MX36-6FS6
Teeth 38
Tooth Style 8MX
For Belt Width (mm) 36
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 3.810
Outside Diameter (in) 3.747
Flange Diameter (in) 4.156
Face Width (in) 1.859
Overall Length (in) 2.516
Hub Diameter (in) 3.328
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.620
Unit System Inch
MOQ 1
Weight (lb) 6.30
Part Number Cross Reference PB8MX-38S-36, 77153038, TB 8M-38S-36, 2765592, PB8MCS-38-36, 38G-8M-36-MPB, 20839732, 8MPC38S36MPB
