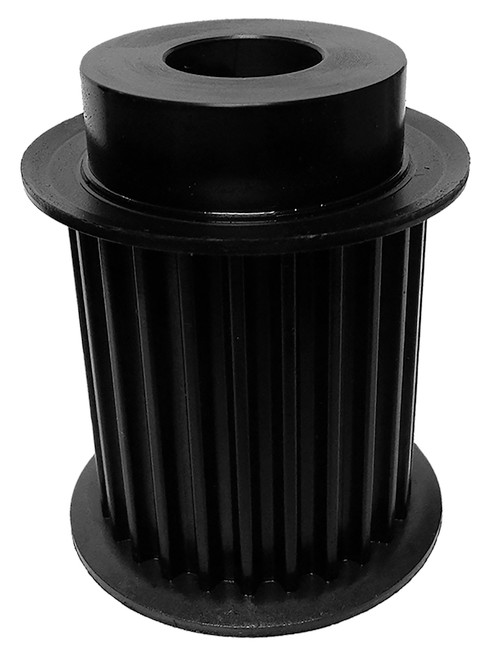

38-8MX62-6FS10, Timing Pulley

38-8MX62-6FS10

Click to Enlarge

38-8MX62-6FS10, Timing Pulley, Ductile Iron, Black Oxide,

Learn more about 38-8MX62-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	38-8MX62-6FS10
Teeth	38
Tooth Style	8MX
For Belt Width (mm)	62.00
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	3.810
Outside Diameter (in)	3.747
Flange Diameter (in)	4.156
Face Width (in)	2.906
Overall Length (in)	3.563
Hub Diameter (in)	3.328
Min. Bore (in)	1
Pulley Belt Width (in)	2.670
Unit System	Inch
P.D. (mm)	97.00
O.D. (mm)	95.20
MOQ	1
Weight (lb)	8.62
Part Number Cross Reference	PB8MX-38S-62, PB8MCS-38-62, 38G-8M-62-MPB, 20839734, PB8MX-38S-62 MPB, 8MPC38S62MPB, 38-8MX62-6FS10, 481992, 38-8MX62-6FS10
