3B48SD, V-Belt Pulley

3B48SD, 4.8-3B-SD, 20179281, 483B, 3B48

Product Details for 3B48SD

Comparable to: QD3A4.6/B4.8, 3B48.SD, 3B48SD, 4.8-3B-SD, 20179281, 483B, 3B4.8, 3/B480SD, 82246026, 3B48, 3BQ48

Click to Enlarge

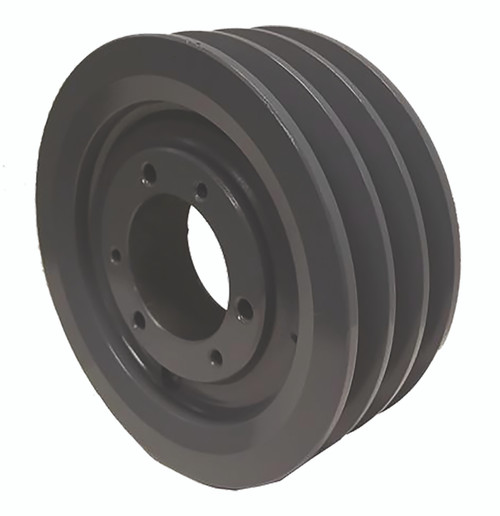

3B48SD, V-Belt Pulley, Cast Iron

Learn more about 3B48SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B48SD
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SD
Outside Diameter (in) 5.150
Face Width (in) 2.500
Min. Bore (in) 0.500
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 4.400
Pitch Dia. "B" 4.800
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 7.10
Part Number Cross Reference QD3A4.6/B4.8, 3B48.SD, 3B48SD, 4.8-3B-SD, 20179281, 483B, 3B4.8, 3/B480SD, 82246026, 3B48, 3BQ48
Grooves 3
