3B58SD, V-Belt Pulley

3B58SD

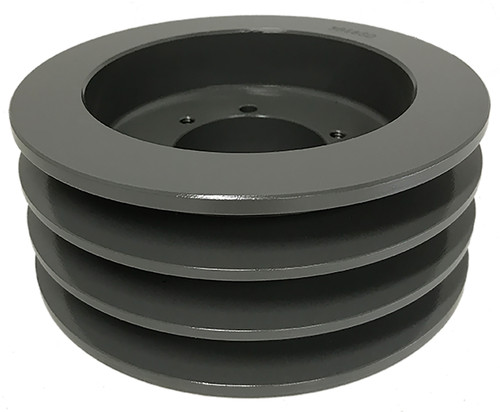

3B58SD, V-Belt Pulley, Cast Iron

Learn more about 3B58SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	3B58SD
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SD Bushing
Outside Diameter (in)	6.150
Face Width (in)	2.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
MOQ	1
Pitch Dia. "A"	5.400
Pitch Dia. "B"	5.800
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	8.80
Part Number Cross Reference	QD3A5.4/B5.8, 3B58SD, 5.8-3B-SD, 20179345, 3B58-SD SHEAVE, 583B, 3B58, 3B58SD, 455621, 3B58SD
Grooves	3
