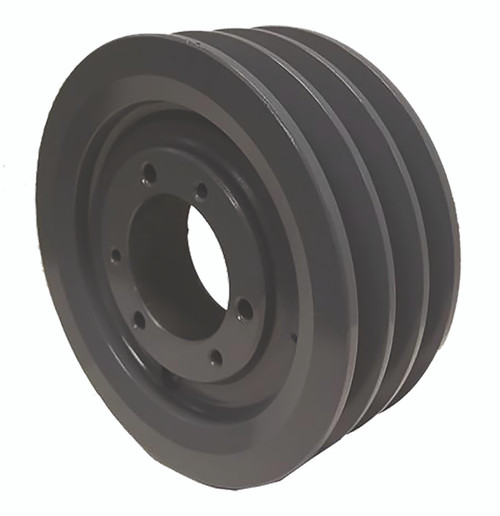

3B70SK, V-Belt Pulley

3B70SK

3B70SK, V-Belt Pulley, Cast Iron

Learn more about 3B70SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	3B70SK
Type	D-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	7.350
Face Width (in)	2.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	6.600
Pitch Dia. "B"	7.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	11.00
Part Number Cross Reference	QD3A7.6/B7.0, 3B70SK, 7.0-3B-SK, 20179419, 3B70-SK SHEAVE, 703B, 3B70, 3B70SK, 455627, 3B70SK
Grooves	3
