3B74SK, V-Belt Pulley

3B74SK, 7.4-3B-SK, 20179434, 743B, 3B74

3B74SK

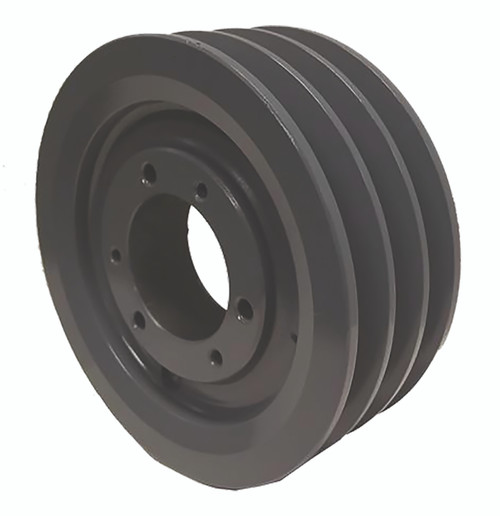

3B74SK, V-Belt Pulley, Cast Iron

Learn more about 3B74SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B74SK
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Outside Diameter (in) 7.750
Face Width (in) 2.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
MOQ 1
Pitch Dia. "A" 7.000
Pitch Dia. "B" 7.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 12.00
Part Number Cross Reference QD3A7.0/B7.4, 3B74SK, 7.4-3B-SK, 20179434, 3B74-SK SHEAVE, 743B, 3B74, 3B74SK, 455628, 3B74SK
Grooves 3

Related Products

Comparable to: QD3A7.0/B7.4, 3B74SK, 7.4-3B-SK, 20179434, 3B74-SK SHEAVE, 743B, 3B74, 3B74SK, 455628, 3B74SK
