3B94SK, V-Belt Pulley

3B94SK

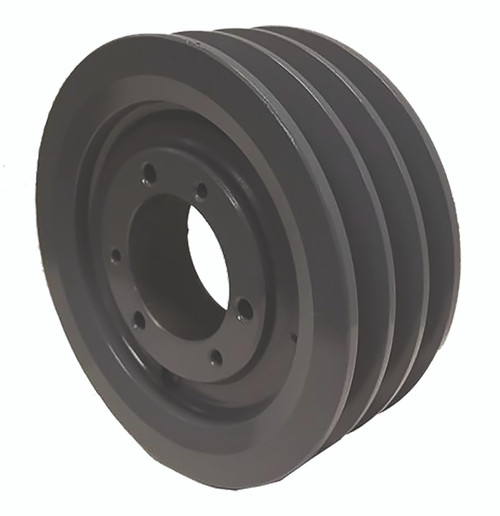

3B94SK, V-Belt Pulley, Cast Iron

Learn more about 3B94SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	3B94SK
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	9.750
Face Width (in)	2.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	9.000
Pitch Dia. "B"	9.400
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	16.00
Part Number Cross Reference	QD3A9.0/B9.4, 3B94SK, 9.4-3B-SK, 20179500, 3B94-SK SHEAVE, 943B, 3B94, 3B94SK, 455631, 3B94SK
Grooves	3
