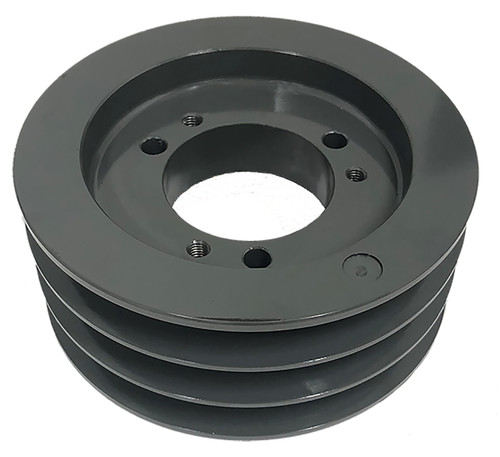

3C100E, V-Belt Pulley

3C100E, QD3C10

3C100E

3C100E, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 3C100E to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 3C100E
Type A-2
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Outside Diameter (in) 10.400
Face Width (in) 3.250
Min. Bore (in) 0.875
Unit System Inch
Bushing E
L (in) 2.75
MOQ 1
Sheave Type C
Weight (lb) 30.10
Part Number Cross Reference QD3C10.0, 3C100E, 10.0-3C-E, 20178913, 3C100-E SHEAVE, 1003C, 3C100, 3C100E, 455815, 3C100E
Grooves 3

Related Products

Comparable to: QD3C10.0, 3C100E, 10.0-3C-E, 20178913, 3C100-E SHEAVE, 1003C, 3C100, 3C100E, 455815, 3C100E
