3C130E, V-Belt Pulley

3C130E, QD3C13

3C130E

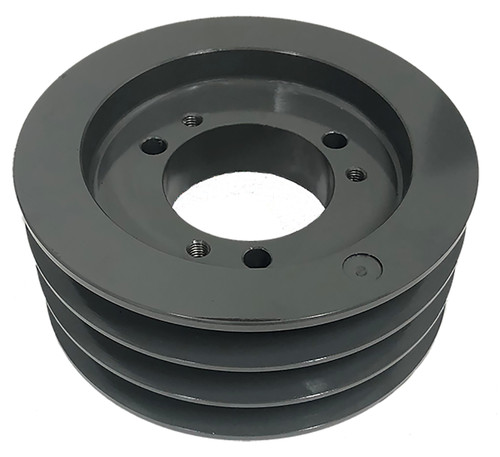

3C130E, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 3C130E to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 3C130E
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Outside Diameter (in) 13.400
Face Width (in) 3.250
Min. Bore (in) 0.875
Unit System Inch
Bushing E
L (in) 2.75
MOQ 1
Sheave Type C
Weight (lb) 42.40
Part Number Cross Reference QD3C13.0, 3C130E, 13.0-3C-E PULLEY, 20178984, 3C130-E SHEAVE, 1303C, 3C130, 3C130E, 455819, 3C130E
Grooves 3

Related Products

Comparable to: QD3C13.0, 3C130E, 13.0-3C-E PULLEY, 20178984, 3C130-E SHEAVE, 1303C, 3C130, 3C130E, 455819, 3C130E
