3C140E, V-Belt Pulley

3C140E, QD3C14

Product Details for 3C140E

Comparable to: QD3C14.0, 3C140.E, 14.0-3C-E, 3C14.0, 3/C1400E, 82246695

Click to Enlarge

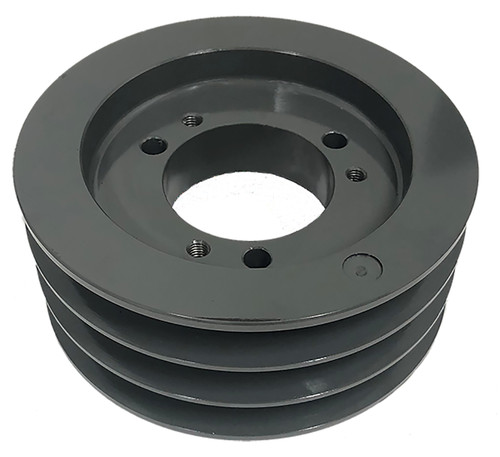

3C140E, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 3C140E in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 3C140E
Material Cast Iron
Bore Type QD
Outside Diameter (in) 14.400
Face Width (in) 3.250
Min. Bore (in) 0.875
Unit System Inch
Bushing E
L (in) 2.750
MOQ 1
Weight (lb) 41.70
Part Number Cross Reference QD3C14.0, 3C140.E, 14.0-3C-E, 3C14.0, 3/C1400E, 82246695
Grooves 3
Set Screw Quantity 0
