3C240E, V-Belt Pulley

3C240E, QD3C24

3C240E

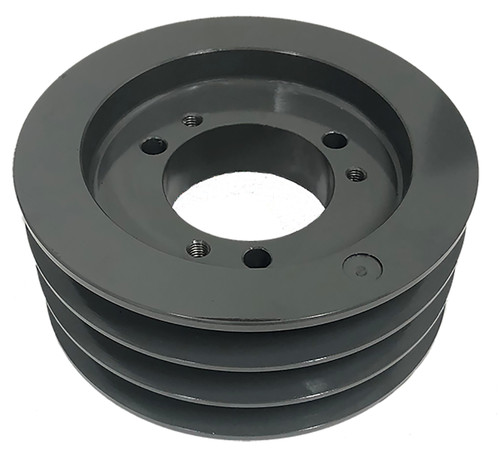

3C240E, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 3C240E to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 3C240E
Type D-3
Material Cast Iron
Bore Type QD
Bore (in) Bored for E Bushing
Outside Diameter (in) 24.400
Face Width (in) 3.250
Min. Bore (in) 0.875
Unit System Inch
Bushing E
L (in) 2.750
MOQ 1
Weight (lb) 78.70
Part Number Cross Reference QD3C24.0, 3C240.E, 24.0-3C-E PULLEY, 20179157, 3C24.0, 3/C2400E, 82246778, 3C240E
Grooves 3

Related Products

Comparable to: QD3C24.0, 3C240.E, 24.0-3C-E PULLEY, 20179157, 3C24.0, 3/C2400E, 82246778, 3C240E
