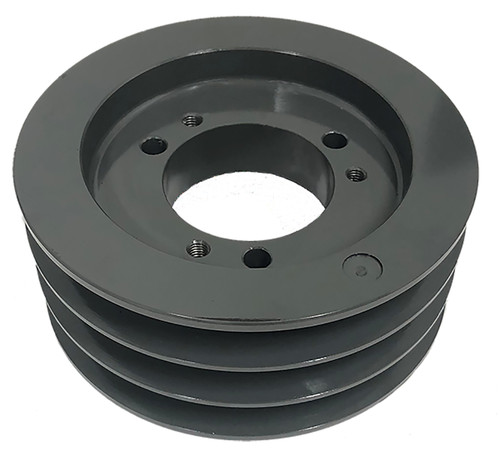

3C300F, V-Belt Pulley

3C300F

3C300F, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 3C300F to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	3C300F
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for F Bushing
Outside Diameter (in)	30.400
Face Width (in)	3.250
Min. Bore (in)	1
Unit System	Inch
Bushing	F
L (in)	3.75
MOQ	1
Sheave Type	C
Weight (lb)	115.40
Part Number Cross Reference	QD3C30.0, 3C300F, 30.0-3C-F PULLEY, 20179218, 3C300-F SHEAVE, 3003C, 3C300, 3C300F, 455825, 3C300F
Grooves	3
