40-14M170-6FS16, Timing Pulley

40-14M170-6FS16 - Steel Powerhouse®HTD® Pulleys

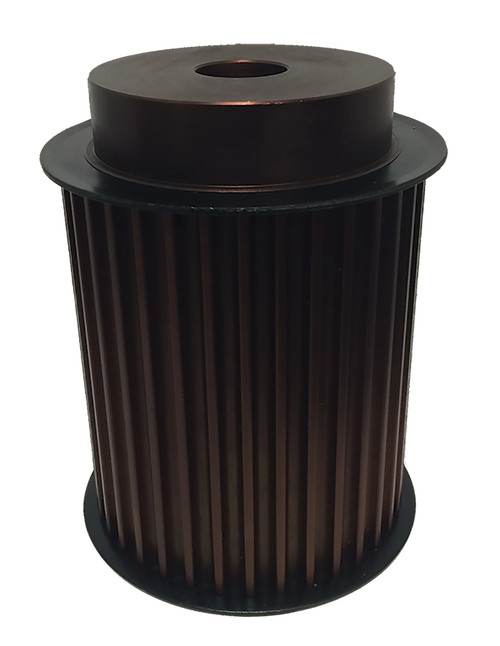

40-14M170-6FS16

40-14M170-6FS16 - Steel Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

40-14M170-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 40-14M170-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-14M170-6FS16
Teeth 40
Tooth Style HTD14mm
For Belt Width (mm) 170.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.500
Bore Description 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 7.018
Outside Diameter (in) 6.908
Flange Diameter (in) 7.500
Face Width (in) 7.375
Overall Length (in) 7.375
Hub Diameter (in) 5.890
Min. Bore (in) 1.5
Unit System Inch
P.D. (mm) 178.00
O.D. (mm) 175.50
MOQ 1
Weight (lb) 63.70
Part Number Cross Reference P40-14M-170, 40-14M170-6FS16, 40-14M170-6FS16
