40-14MX90-6FS16, Timing Pulley

40-14MX90-6FS16 - Cast Iron Powerhouse® MX Pulleys

Product Details for 40-14MX90-6FS16

Comparable to: 40-14MX90-6FS16, PB14MX-40S-90, PB14MCS-40-90, 40G-14M-90-MPB, 208398

Click to Enlarge

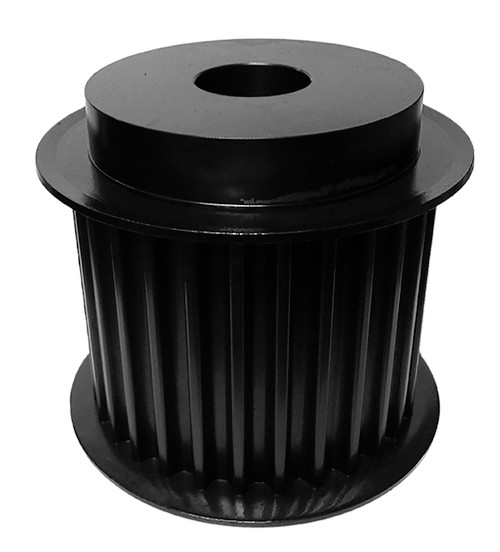

40-14MX90-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 40-14MX90-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-14MX90-6FS16
Teeth 40
Tooth Style GT2 14mm
For Belt Width (mm) 90.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 7.018
Outside Diameter (in) 6.908
Flange Diameter (in) 7.518
Face Width (in) 4.203
Overall Length (in) 4.203
Hub Diameter (in) 5.890
Min. Bore (in) 1.500
Pulley Belt Width (in) 3.880
Unit System Inch
Max. Bore (in) 5.64
Weight (lb) 42.88
Part Number Cross Reference 40-14MX90-6FS16, PB14MX-40S-90, PB14MCS-40-90, 40G-14M-90-MPB, 208398
