40-14P85-3020, Timing Pulley

40-14P85-3020 - Cast Iron Powerhouse® Pulleys

Product Details for 40-14P85-3020

Comparable to: P40-14MGT-85, 2764009, B4014M85TL, P40-14M-85-3020, 20182810

Click to Enlarge

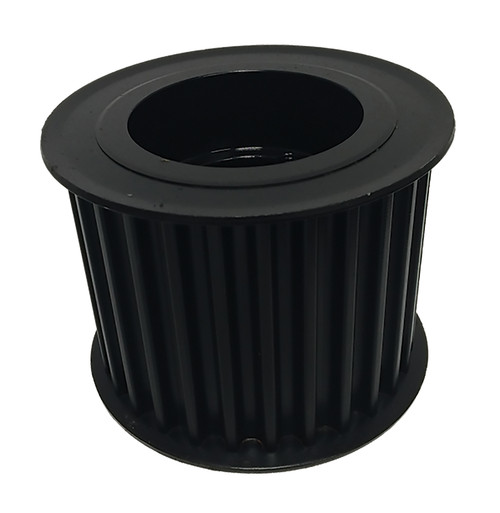

40-14P85-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 40-14P85-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-14P85-3020
Teeth 40
Tooth Style 14P
For Belt Width (mm) 85
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 7.018
Outside Diameter (in) 6.908
Flange Diameter (in) 7.518
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 0.875
Pulley Belt Width (in) 3.680
Unit System Inch
Bushing 3020
MOQ 1
Weight (lb) 19.53
Part Number Cross Reference P40-14MGT-85, 2764009, B4014M85TL, P40-14M-85-3020, 20182810
