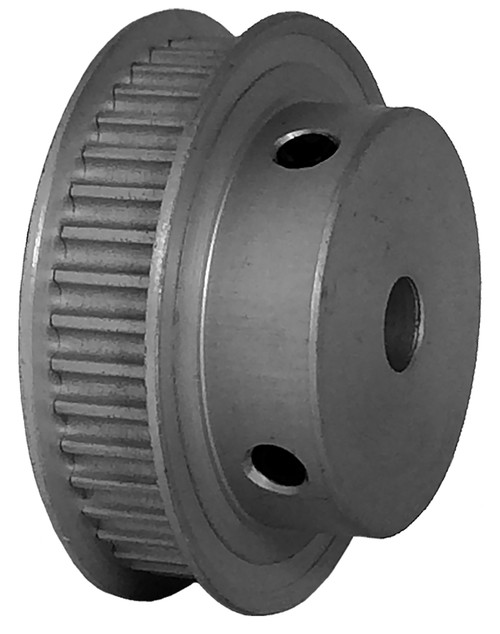

40-3P06-6FA3, Timing Pulley

40-3P06-6FA3, A 6A53-040DF0608, 3MR-40S-06, 78436063

Product Details for 40-3P06-6FA3

Comparable to: 40-3P06-6FA3, A 6A53-040DF0608, A6A53-040DF0608, 3MR-40S-06, 78436063

40-3P06-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Learn more about 40-3P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-3P06-6FA3
Teeth 40
Tooth Style GT 3mm
For Belt Width (mm) 6.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.474
Flange Diameter (in) 1.625
Face Width (in) 0.407
Overall Length (in) 0.713
Hub Diameter (in) 1.150
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.280
Unit System Inch
Max. Bore (in) 0.9
Weight (lb) 0.10
Part Number Cross Reference 40-3P06-6FA3, A 6A53-040DF0608, A6A53-040DF0608, 3MR-40S-06, 78436063
